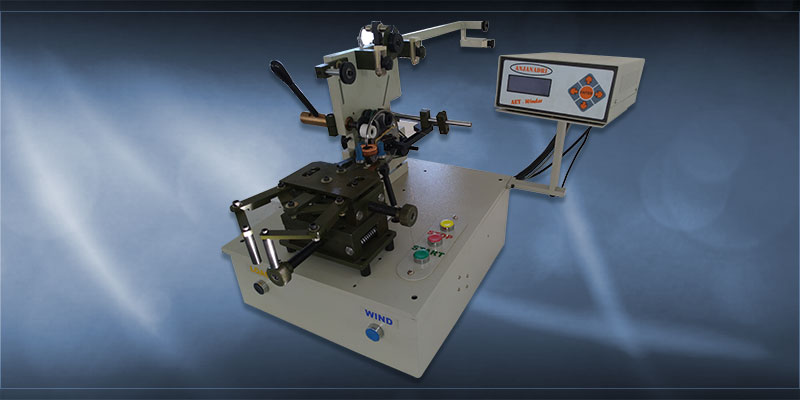

AET - CTW 100 - S / B
| FINISHED INNDER DIAMETER : | 12 mm |
| FINISHED OUTER DIAMETER : | 40 mm |
| FINISHED HIEGHT : | 20 mm |
| WIRE DIAMETER : | 0.07 to 0.7 mm(45 to 22SWG) |
| WINDING SPEED : | 1800 TPM |
| DISPLAY : | 20X4 lines LCD |
| MEMORY : | 100 Programs |
| CORE DRIVE : | Hybrid Stepper Motor |
| SUPPLY : | 230V 50 HZ AC |
| POWER : | 250W |
| TOTAL TURNS : | 999999 |
| TAPS : | 9 |
| SEGMENT WINDING : | Programmable |
| MEMORY BACKUP : | In Built |
| PASSWORD : | Programmable |
| SHUTTLE SIZE : | 3 mm to 8mm |
