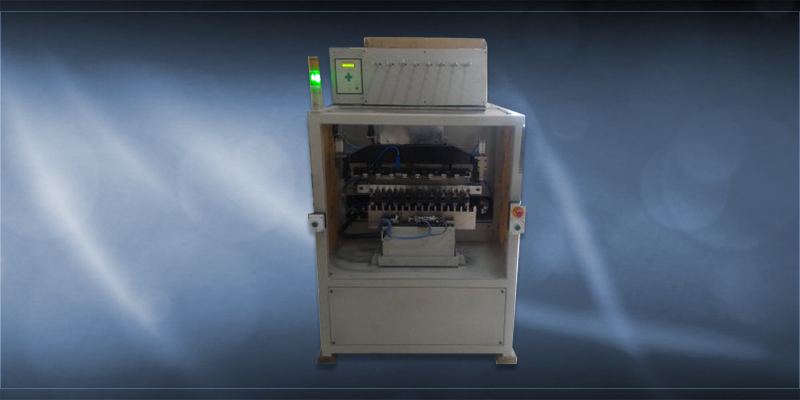

AET - AT8 - 80
Eight Spindle Front Loading Fully Automatic Machine
Coil Swing Diameter : | 65 mm |
Wire Diameter : | 0.4 mm |
Total Turns : | 999999.9 |
Winding Width : | 80 |
X / Y / Z Axis Motor : | 180W Ac Servo Motor |
Spindle Motor : | 2000W AC Servo Motor |
Controller : | PLC |
Turns Accuracy : | 0.01 turns |
No. of Taps : | 9 |
Winding Speed : | 10000 RPM |
Memory : | 100 Programs |
Memory Backup(Power-Off) : | NA |
Display : | 7 Inch HMI |
Power Supply : | 430V 3Phase 50Hz |
Power Consumption : | 3000W |
Wire Cut Indication : | Online |
Production Quantity : | Online |
Password : | Programmable |
Foot Switch : | Optional |
