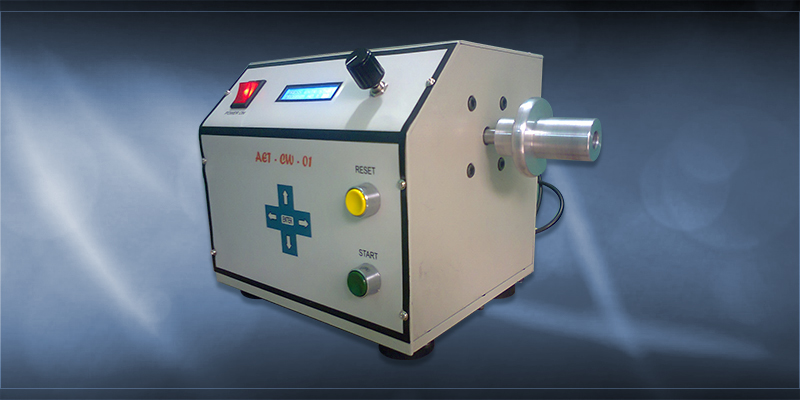

AET - 01 CW
Single Spindle Side Loading Semi Automatic Machine Without Traverse
| Coil Swing Diameter : | 80 mm |
| Wire Diameter : | 0.8 mm |
| Total Turns : | 999999.9 |
| Winding Width : | NA |
| Traverse Motor : | NA |
| Spindle Motor : | 180W 180V PMDC Motor |
| No. of Taps : | 9 |
| Turns Accuracy : | 0.1 turns |
| Winding Speed : | 200 - 4000 RPM |
| Memory : | 100 Programs |
| Memory Backup(Power-Off) : | Inbuilt |
| Display : | 20x4 LCD |
| Power Supply : | 230V 50Hz |
| Power Consumption : | 250W |
| Wire Cut Indication : | Online |
| Production Quantity : | Online |
| Password : | Programmable |
| Foot Switch : | Optional |
