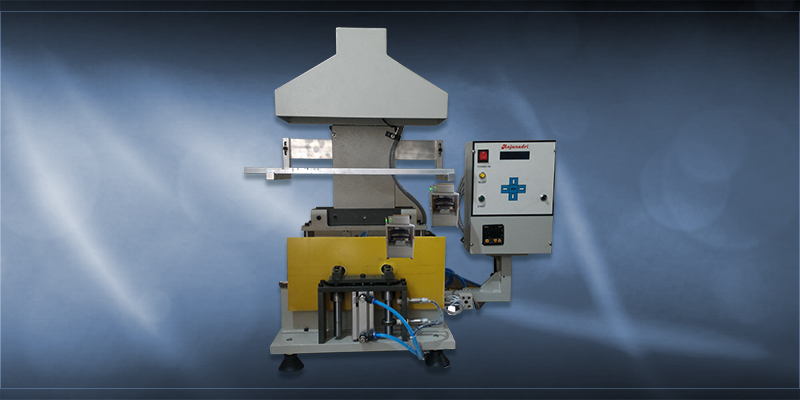

Considered amongst the reputed business names of the industry, we are actively occupied in providing a quality approved gamut of Automatic Dip Soldering Machine within the assured time frame.

We hold expertise in offering a wide range of Dip Soldering Machines. These machines are directly sourced from trustworthy vendors, who manufacture these using best available technologies and ensure long functional life and high functional efficiency of these machines. Our machines are compact in size and ensure consistent performance. These are available in various dimensions and technical specifications.

    Features :

  • Dimensionally accurate
  • Sturdy construction
  • Rust proof

TECHNICAL SPECIFICATION

DIPING HIGHT (PROGRAM CONTROL) : 0 – 90mm.
POT SIZE (SS POT) : 290(L) X 100(W) X 60(D)mm
SS CUP FOR LIFTING LEAD : 250(L) X 70(W) X 15(D)mm
TEMP.CONTROL : SELEC MAKE.
TEMPERATURE : 0 – 600 Degree.
THERMO COUPLE : K TYPE.
HEATER : 2.5KW, 220V,50HZ.
PNUEMATICS : FESTO/METAL WORKS,
CONTROLLER : MICRO CONTROLLER BASED (OWN MAKE)
INDEXING : STEPPER CONTROLLED AND PNUEMATIC LOCKING
FLUXING : PNUEMATIC CONTROLLED
UNLOADING : PNUEMATIC CONTROLLED.
LOADING : MANUAL
