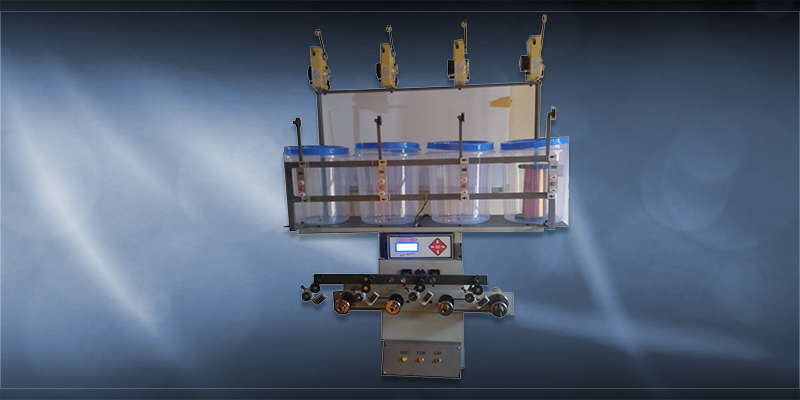

AET - 04F
Four Spindle Front Loading Semi Automatic Machine
Coil Swing Diameter : | 75 mm |
Wire Diameter : | 0.4 mm |
Total Turns : | 999999.9 |
Winding Width : | 150 |
Traverse Motor : | Hybrid Stepper Motor |
Spindle Motor : | 350W 180V PMDC Motor |
No. of Taps : | 9 |
Turns Accuracy : | 0.1 turns |
Winding Speed : | 200 - 9000 RPM |
Memory : | 100 Programs |
Memory Backup(Power-Off) : | Inbuilt |
Display : | 20x4 LCD |
Power Supply : | 230V 50Hz |
Power Consumption : | 450W |
Wire Cut Indication : | Online |
Production Quantity : | Online |
Password : | Programmable |
Foot Switch : | Optional |
